AP362 - 11ax indoor,2+2 dual bands,smart antenna

Original price was: ₦194,000.00.Current price is: ₦191,000.00.

Add to cart
Buy it now
Ask a Question
Social Share
Guarantee safe & secure checkout
Guarantee & safe checkout
On all order
Category : Tag : Brand:

Description

AP362 – 11ax indoor,2+2 dual bands,smart antenna



Description

Item Details
Description AP362(11ax indoor,2+2 dual bands,smart antenna)
Part Number 50085706
Model AP362
First supported version V200R021C11

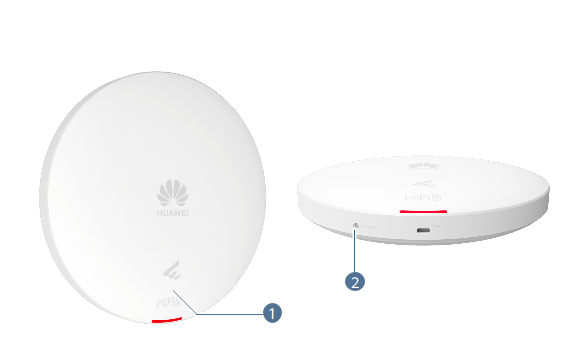

Silkscreen Name Color Status Description
– System indicator Green Steady on The AP is just powered on and the software is not started yet.
Green Steady on after blinking once After the system is reset and starts uploading the software, the indicator blinks green once. Until the software is uploaded and started, the indicator remains steady green.
Green Slow blinking (0.5 Hz) The AP runs in Fat or Fit mode, the Ethernet connection is normal, and STAs are associated with the AP.
Green Slow blinking (0.2 Hz) The AP runs in Fat or Fit mode, the Ethernet connection is normal, and no STA is associated with the AP.
Green Blinking once every 0.25s (4 Hz)

The AP works in Fat or Fit mode.

  • The software is being upgraded.
  • In Fit mode, the AP is requesting to go online or fails to go online.
Blue Slow blinking (0.5 Hz) The AP works in cloud mode, has gone online on the cloud management controller, and is running properly.
Blue Blinking once every 0.25s (4 Hz) The AP works in cloud mode and is connecting to the cloud management controller (including reconnection after disconnection).
Red Steady on A fault that affects services has occurred, such as a DRAM detection failure or system software loading failure. The fault cannot be automatically rectified and must be rectified manually.

Table 4-209 Buttons on the AP362

Silkscreen Name Description
Default Reset button
  • For V200R023C00 and earlier versions, if you press the button, the device resets; if you hold down the button for more than 6 seconds, the device restores the factory settings, switches to the Fit mode, and restarts.
  • For V200R023C10 and later versions, if you press the button, the device resets; if you hold down the button for more than 6 seconds, the device restores the factory settings, switches to the cloud mode, and restarts.

Technical Specifications

Table 4-210 Technical specifications of the AP362

Item Specification
Installation Type
  • Wall
  • Ceiling
  • T-Rail
Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 200 mm x 231 mm x 52 mm (7.87 in. x 9.09 in. x 2.05 in.)
Weight without packaging [kg(lb)] 0.46 kg (1.01 lb)
Weight with packaging [kg(lb)] 0.80 kg (1.76 lb)
Storage NAND Flash 256 MB
Console port None
Maximum power consumption [W] 11.2 W
Power supply mode
  • DC adapter
  • PoE
Rated input voltage [V] 12 V
Input voltage range [V]

DC: 12 V ± 10%

PoE: 802.3af
Service port surge protection

PoE port:

Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion C
Maximum number of physical ports on the entire device GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa – 106kPa ETSI 300 019-2-3
Ground floating ground
BLE Not supported
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2×2

Radio 1 (5 GHz): 2×2
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4G:

4 dBi/chain (peak)

2 dBi (combined gain)

5G:

5 dBi/chain (peak value)

3 dBi (combined gain)
Maximum transmit power

2.4G:

20 dBm/chain

23 dBm (combined power)

5G:

20 dBm/chain

23 dBm (combined power)
Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain
MTBF [year] 205.07 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3bt power supply description No function is limited.
802.3at power supply description No function is limited.
802.3af power supply description No function is limited.
DC power supply description No function is limited.
